【產品名稱】高強度紫外線光固化燈

【產品型號】JYU

【產品小類】JYU金屬頭/ JYU陶瓷頭

【產品類別】UV固化燈

【關鍵字】UV光固化、365nm紫外線、中波紫外線

【技術原理】高強度氣體放電燈

【產品特點】

1．高強度氣體放電燈，強紫外線輸出、固化速度快；

2．選用進口石英玻璃管制成，紫外線透過率極強；

3．高漏磁感應變壓器加起啟動，光譜能量分布以365nm為中心，有效范圍350nm-450nm；具有極高的功率密度和有效的紫外線波段；

4．強紫外線高壓汞燈輻射，瞬時表面固化；

5．瞬時固化、省時省電、節約空間和無污染等特點；

6．燈頭分為金屬和陶瓷兩種，其中陶瓷燈頭采用耐高溫線作導線，保障使用效果。

【應用范圍】UV漆干燥、表面固化、印刷制版、油墨干燥、光固化、高分子化合物老化、半導體元件制作等光化學領域

【綜合介紹】

高強度紫外線光固化燈，簡稱UV燈，屬高強度氣體放電燈，選用進口石英玻璃管制成，紫外線透過率極強。高漏磁感應變壓器加起啟動，光譜能量分布以365nm為中心，有效范圍350nm-450nm，具有極高的功率密度和有效的紫外線波段。強紫外線高壓汞燈輻射，瞬時表面固化，系近幾年迅速發展的一項高新技術。高強度紫外線光固化燈具有瞬時固化、省時省電、節約空間和無污染等特點，特別適用于印刷制版、油墨干燥、光固化、高分子化合物老化、半導體元件制作等光化學領域。高強度紫外線光固化燈燈頭分為金屬和陶瓷兩種，其中陶瓷燈頭采用耐高溫線作導線，保障使用效果。

【使用說明】

1．該燈需用相應的鎮流器、觸發器或漏磁變壓器方能使用。

2．安裝前需用紗布沾取乙醚擦拭燈管表面，以免燈管過早失透。

3．該燈有紫外線輻射，操作者須佩帶墨鏡，以免灼傷眼球。

4．巨源光電還承接進口設備UV光源及非標光源的制作。

【產品照片】

【視頻資料】

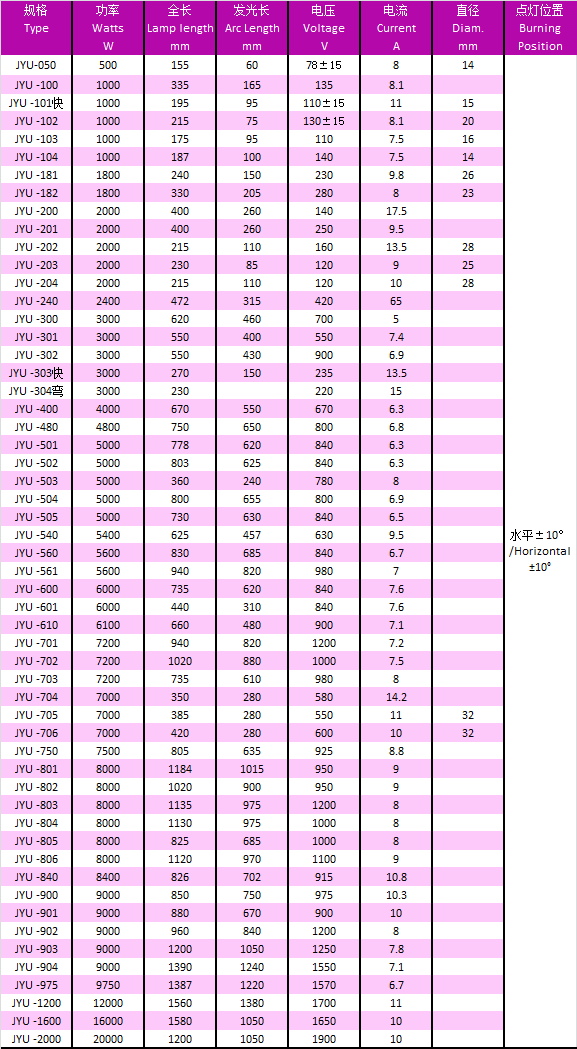

【規格參數】

[product name] high intensity UV light curing lamp
[product model] JYU
JYU metal head / JYU ceramic head
UV curing lamp [product category]
UV light curing, 365nm UV, and UVB
High strength gas discharge lamp
[product characteristics]
1. high strength gas discharge lamp, strong UV output, fast curing speed;
2. made of imported quartz glass tubes, the ultraviolet transmittance is very strong.
3., high magnetic leakage induction transformer is added to start up. The spectral energy distribution is centered at 365nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band.
4. strong ultraviolet high pressure mercury lamp radiation, instantaneous surface curing;
5. instantaneous curing, saving time and electricity, saving space and pollution-free, etc.
6. the lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head adopts the high temperature resistance wire as the wire to guarantee the use effect.
[application area] UV paint drying, surface curing, printing plate making, ink drying, UV curing, polymer aging, semiconductor manufacturing and other fields of photochemistry.
[comprehensive introduction]
High intensity ultraviolet light curing lamp, called UV lamp, is a high strength gas discharge lamp. It is made of imported quartz glass tube with very strong ultraviolet transmittance. The high leakage magnetic induction transformer is added to start up. The spectral energy distribution is centered at 365nm, and its effective range is 350nm-450nm. It has high power density and effective ultraviolet band. High pressure ultraviolet mercury lamp radiation, instant surface curing, is a rapid development of a new technology in recent years. High intensity UV curable lamp has the characteristics of instant curing, saving time and electricity, saving space and no pollution. It is especially suitable for printing, plate making, printing ink drying, light curing, polymer aging, semiconductor manufacturing and other fields. The high intensity ultraviolet light curing lamp lamp head is divided into two kinds of metal and ceramic, of which the ceramic lamp head uses the high temperature resistance wire as the wire to guarantee the use effect.
[instructions]
1. the lamp should be used by the corresponding ballast, trigger or magnetic flux leakage transformer.
2. before installation needs to use gauze to dip the ether to wipe the surface of the lamp, so as to avoid the premature loss of the lamp.
3. the lamp has ultraviolet radiation, and the operator must wear sunglasses to avoid burning the eyeball.
The 4. giant source optoelectronic also carries on the production of the imported equipment UV light source and the non standard light source.
[product photo]
[video data]
[specification parameter]
