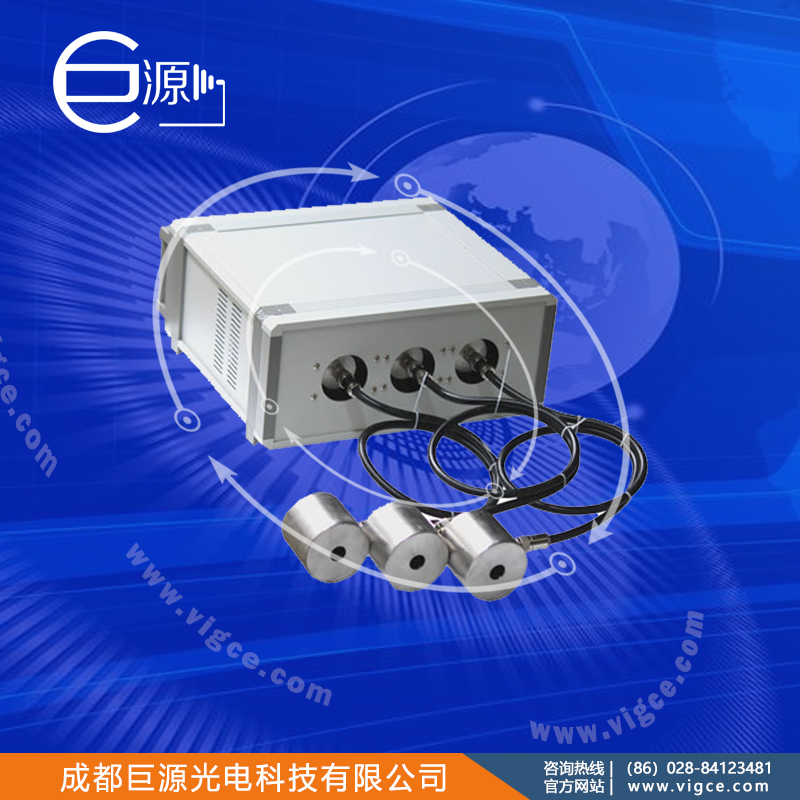

【產品名稱】三組微波無極紫外燈集成設備

【產品型號】JYM3

【關 鍵 字】多組微波無極燈,中央控制無極紫外燈

【產品類別】UV光泵

【技術原理】

基于微波無極紫外燈系統設計研發，通過微波、紫外線和臭氧三位一體作用于處理物質，利用UV光解、光催化、光氧化、光解VOCS和干擾細胞合成等方式，達到消毒殺菌和加快有機物分解，用于各種有毒、異味、惡臭、污染等氣體、液體的凈化處理。

1.微波：可使細胞中極性物質隨高頻微波場的震動受到干擾和阻礙, 引起微生物細胞的蛋白質、核酸等生物大分子受熱凝固或變性失活, 從而導致其突變或死亡。

2.紫外線：光譜為253.7nm的紫外線通過照射微生物的DNA，使其發生光化學反應，從而變性失活，是目前公認的最佳消毒光譜線。

3.臭氧( O3 )：微波激發光譜為185nm的射線與空氣中的氧氣反應生成的臭氧具有強氧化作用，是已知的最強氧化劑。對從烴到羧酸的種類眾多有機物都可分解，可有效地殺滅各種細菌病菌，臭氧的彌散性可彌補由于紫外線只沿直線傳播、消毒有死角的缺點。

【產品特點】

1.基于無極紫外燈系統開發，具有無極紫外燈快速啟動，壽命長等特點；

2.集成中央控制電路，方便操控；

3.電源可分組獨立控制，可分別開啟一組、兩組或三組電源；

【應用范圍】光清洗、印刷、材料表面改性、表面去油、輻照?qǐng)龊?、廢水處理、廢氣處理、UV光解、光解VOCS

【綜合介紹】

三組微波無極燈電源集成應用包括：中央控制電路；分組獨立控制，可分別開啟一組、兩組或三組電源；小體積紫外燈電源，電源箱體積大小與一組電源相近；電流電壓顯示，超負荷報警功能；鋁合金材質機箱，輕巧、耐用、散熱快、外形美觀。

【使用說明】

【產品照片】

【視頻資料】

【同系產品】

【規格參數】見產品參數表

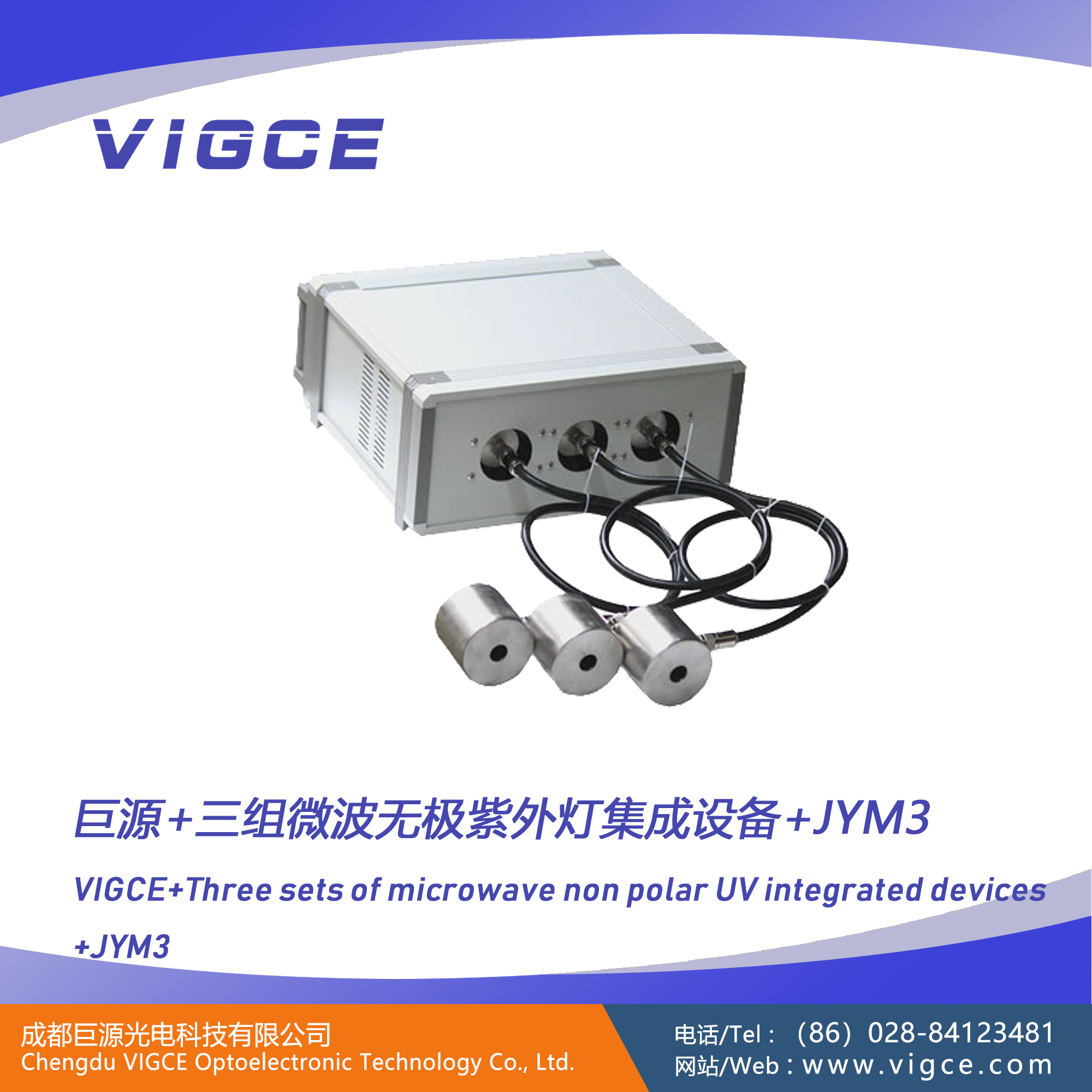

Three sets of microwave non polar UV integrated devices
[product model] JYM3
Multiple groups of microwave non polar lamps and central control of non polar ultraviolet lamps
[product category] UV optical pump
[technical principle]
Research and design of microwave electrodeless UV lamp system based on the microwave, UV and ozone three-in-one effect on processing material, the use of UV photolysis, photocatalysis and oxidation, photolysis and VOCS interference cell synthesis, achieve sterilization and accelerate the decomposition of organic matter, used for purifying various toxic odor, odor pollution, etc. gas and liquid.
1. microwave: the polar materials in the cell will be interfered with and obstructed by the vibration of the high-frequency microwave field, causing the biological macromolecules such as proteins and nucleic acids in the microbial cells to undergo heat coagulation or denaturation, resulting in mutation or death.
2. ultraviolet: the ultraviolet spectrum of 253.7nm is the best disinfecting spectrum line by irradiating the DNA of microorganism to make photochemical reaction and deactivation.
3. ozone (O3): the microwave excitation spectrum is the strongest oxidant known for the strong oxidation of the ozone generated by the reaction of 185nm's rays with the oxygen in the air. From hydrocarbon to carboxylic acid, many organic substances can be decomposed, which can effectively kill all kinds of bacterial pathogens. The dispersion of ozone can make up for the shortcoming of ultraviolet rays spreading along the straight line and sterilizing dead ends.
[product characteristics]
1. based on the development of the unpolar ultraviolet lamp system, it has the characteristics of fast starting and long life.
2. integrated central control circuit, easy to control;
3. power supply can be divided into group independent control, which can open one group, two groups or three groups of power separately.
Light cleaning, printing, surface modification of materials, surface deoiling, irradiation, wastewater treatment, waste gas treatment, UV photolysis, and photolysis VOCS
[comprehensive introduction]
Three groups of microwave electrodeless lamp power supply integrated application includes a central control circuit; the packet can be independently controlled, respectively open a group of two groups or three groups of power supply; small volume UV lamp power supply, power supply box size similar to a group of power supply; current voltage display, overload alarm function; Aluminum Alloy material lightweight chassis and durable, fast heat dissipation, beautiful appearance.
[instructions]
[product photo]
[video data]
[homologous products]
See the product parameter table
